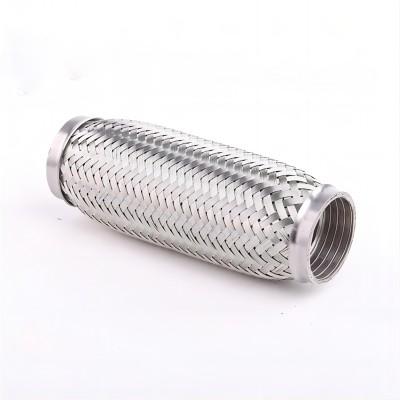

Auto exhaust flexible stainless bellows

Auto Parts Stainless Steel Braid Exhaust Flexible Pipe Bellows is an Automobile exhaust system component, which is installed between engine and muffler, it is used to decrease engine noise and vibration, bsorb muffler pipe thermal expansion and shock compensates for exhaust converter misalignment, and reduces air pollution.




Feature:

1. Well designed exhaust bellows, aims to reduce vibration and noise, and extend the life of the exhaust system by reducing the pressure on the system.

2. Can effectively avoid the premature cracking of the manifold and the drain pipe, and also protect other components.

3. Absorbs heat and expands, can be applied to turbine waste gate drain pipe applications, reducing stress on the turbine, waste gate flanges and pipes.

4. The inner lining ensure laminar flow while maintaining the flexibility of the coupling itself.

5. Adopts high‑quality stainless steel, durable and sturdy, universal car accessories, can be used in any vehicle.Spe




Specification：

Brand Universal Exhaust Flexible  Stainless Steel Pipe with Bushing
Diameter	Length of Flex	Overlength	Diameter	Length of Flex	Overlength
1-3/4"(45mm)	4"(102mm)	8"(203mm)	2-1/2"(63.5mm)	4"(102mm)	8"(203mm)
	6"(152mm)	10"(254mm)		6"(152mm)	10"(254mm)
	7"(180mm)	11"(280mm)		7"(180mm)	11"(280mm)
	8"(203mm)	12"(305mm)		8"(203mm)	12"(305mm)
	9"(230mm)	13"(330mm)		9"(230mm)	13"(330mm)
	10"(254mm)	14"(360mm)		10"(254mm)	14"(360mm)
2"(51mm)	4"(102mm)	8"(203mm)	3"(76.2mm)	4"(102mm)	8"(203mm)
	6"(152mm)	10"(254mm)		6"(152mm)	10"(254mm)
	7"(180mm)	11"(280mm)		7"(180mm)	11"(280mm)
	8"(203mm)	12"(305mm)		8"(203mm)	11"(280mm)
	9"(230mm)	13"(330mm)		9"(230mm)	13"(330mm)
	10"(254mm)	14"(360mm)		10"(254mm)	14"(360mm)
2-1/4"(57mm)	4"(102mm)	8"(203mm)	Other Size Available, support customization
	6"(152mm)	10"(254mm)
	7"(180mm)	11"(280mm)
	8"(203mm)	12"(305mm)
	9"(230mm)	13"(330mm)
	10"(254mm)	14"(360mm)




Structures:

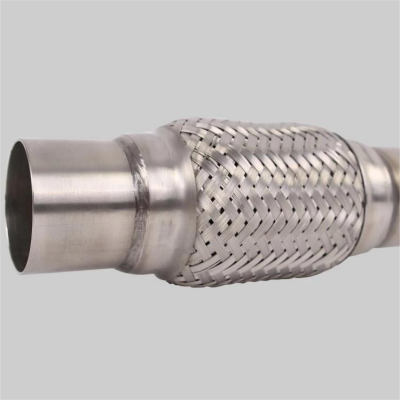

Bellows+ Outside braid+ Inner Braid


Outside braid, middle double bellows, lined with inside braid and lined with inside interlock or nothing inside, and with collars on the both ends
