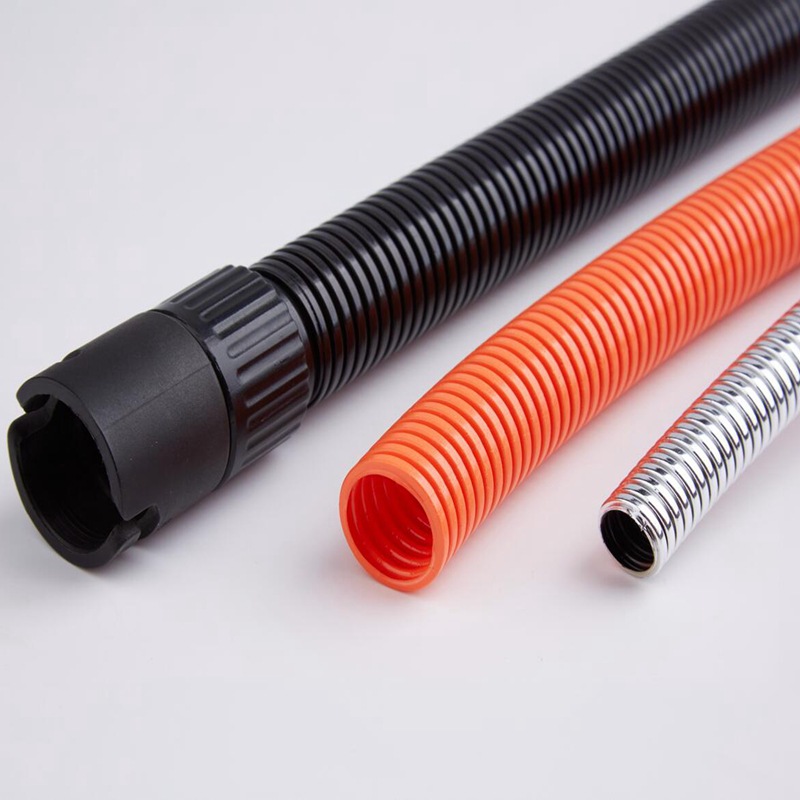

Nylon corrugated protect pipe

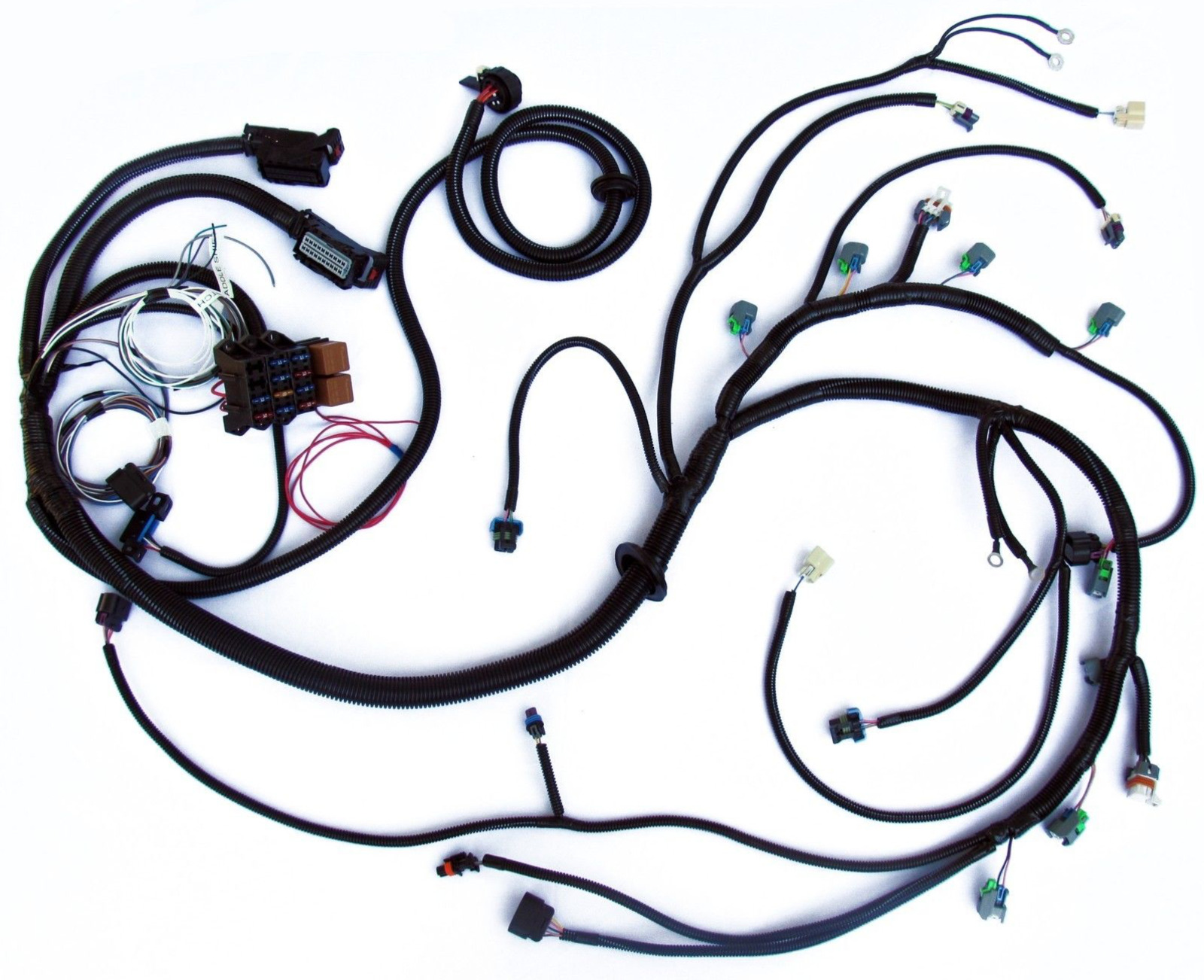

With the emerging and rising of new energy vehicles, a good new energy vehicle can't be separated from a set of good circuits, and the quality of the circuits largely depends on the quality of the wiring harness. However, the external environment of the wiring harness is also very important, so the bellows came into being at this time. AAB auto tech as a leading autoparts supplier, we offer full series nylon corrugated protect pipe for electrical Lighting Wiring & Connecting, offer OEM/ODM for fuel and Electrical automotive Wiring Harness with ISO/TS16949.



Features :

1. product material: PP Polypropylene (polypropylene)

2. Working temperature:-40°C-+125°C can reach+130 C in a short time.

3. Color: black, other colors can be made to order (can be opened according to needs)

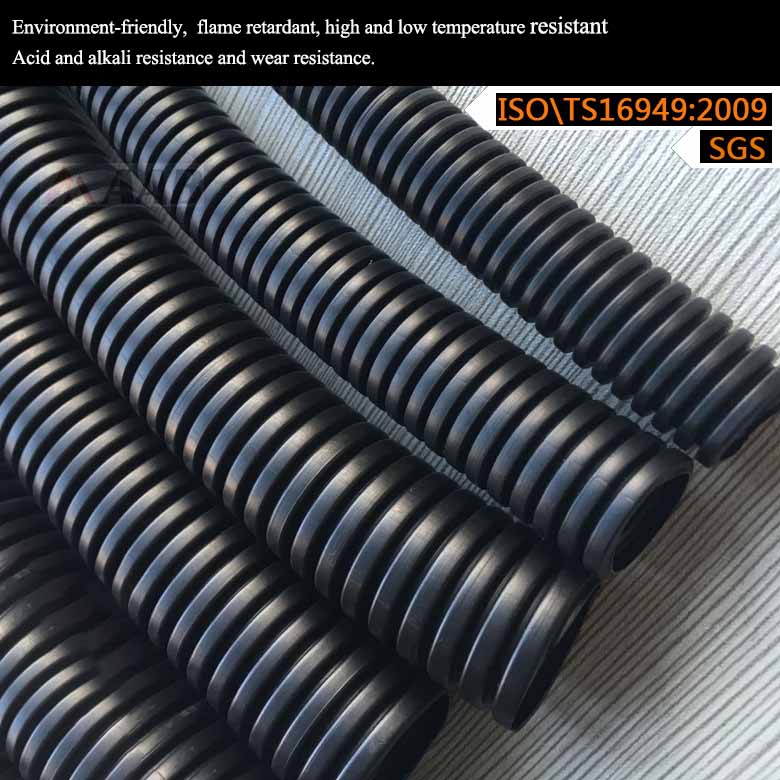

4. Scope of supply: flame retardant

5. Flame retardant grade: FV-1 and FV-0 6. Product certification: SGS; ISO/TS16949:2009

7.  halogen-free, friction-resistant, acid-resistant, alkali-resistant, lubricating oil, inorganic salts, etc., and good flexibility.




Application fields:

automotive wiring harness, machine tool machinery, power engineering, I-industry automation, electronic appliances, rail transit, shipbuilding, communication lines, etc.




Specification：




Model	D*De    (mm)	Radius    (mm)	Thickness    (mm)	Length   (M)	Maximum tension            (KG)
PBP45	4.5*7.0	5	0.3±0.05	500	11
PBP55	5.5*7.5	8	0.3±0.05	500	10
PBP65	6.5*9.2	10	0.3±0.05	500	11
PBP75	7.5*10.5	12	0.3±0.05	400	12
PBP85	8.5*11.5	15	0.3±0.05	400	12
PBP100	10*13.0	20	0.3±0.05	300	17.5
PBP120	12*15.8	30	0.32±0.05	200	21
PBP130	13*17.4	35	0.32±0.05	200M	26
PBP145	14.5*18.5	40	0.32±0.05	200M	31.5
PBP170	17.0*21.2	45	0.32±0.05	100M	39
PBP200	20.5*25.0	50	0.35±0.05	100M	42
PBP210	21*26.8	52	0.35±0.05	100M	43
PBP230	23*28	55	0.4±0.05	50M	46
PBP250	25*31.5	58	0.4±0.05	50M	50
PBP290	29*34	60	0.4±0.05	50M	55
PBP360	36*41	70	0.4±0.05	25M	80
